KONTROL S4, external source in the line C or D

Hello everyone, how can i connect external source ( a tablet with rca) at channel line C or D?

4decks works fine and C & D line are in Imput mode, but there is no signal.

When i disconnect the usb from my computer, and closing traktor pro 4, i can see the signal, and i hear music, cause kontrol s4 is standalone mixer.

Output routing setting it't ok. What i'm doing wrong?

Thanks in advanced.

Find more posts tagged with

Accepted answers

All comments

Sûlherokhh

https://community.native-instruments.com/discussion/48739/kontrol-s4-external-source-in-the-line-c-or-d

You have to set the decks to LIVE INPUT in the software (click on DeckLetter and select LIVE INPUT).

Yiannis Momos

thank you sulhkerokh, for your reply,

I have done already this and I know about liking the letter and the live input,

but still I don't have signal on the channel.

lord-carlos

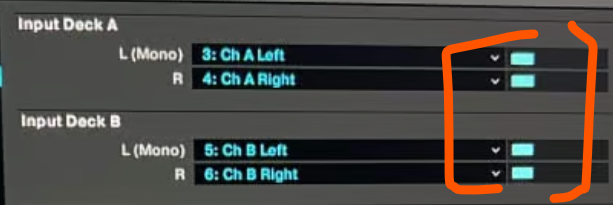

Can you take a screenshot of your input routing?

And when you play something on an external source, do you see these bars go up?

Yiannis Momos

of course, I choose also the button for line in the controller, but still no signal. what I'm doing wrong ?

lord-carlos

With "of course" you mean you do see the bars go up?

Yiannis Momos

no load-carros, I mean that the bars don't have signal. soon I'm gonna upload photos.

Yiannis Momos

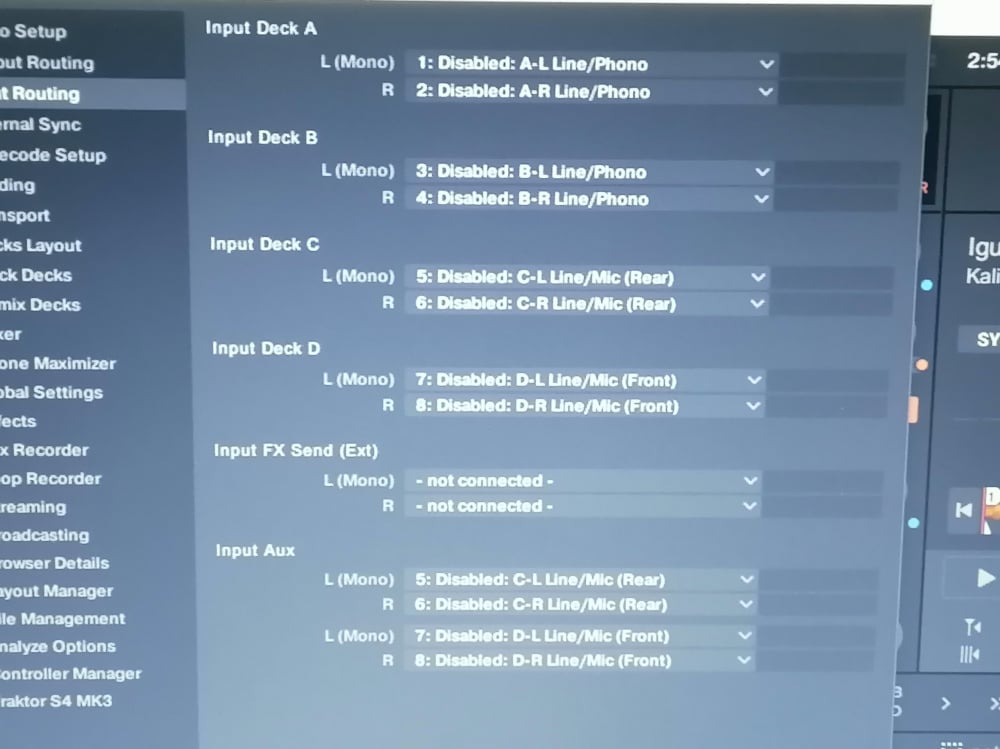

I saw this '' disabled'' but I can hear fine the sound on my speakers , the output works fine in when I doing digital with my controller.

Yiannis Momos

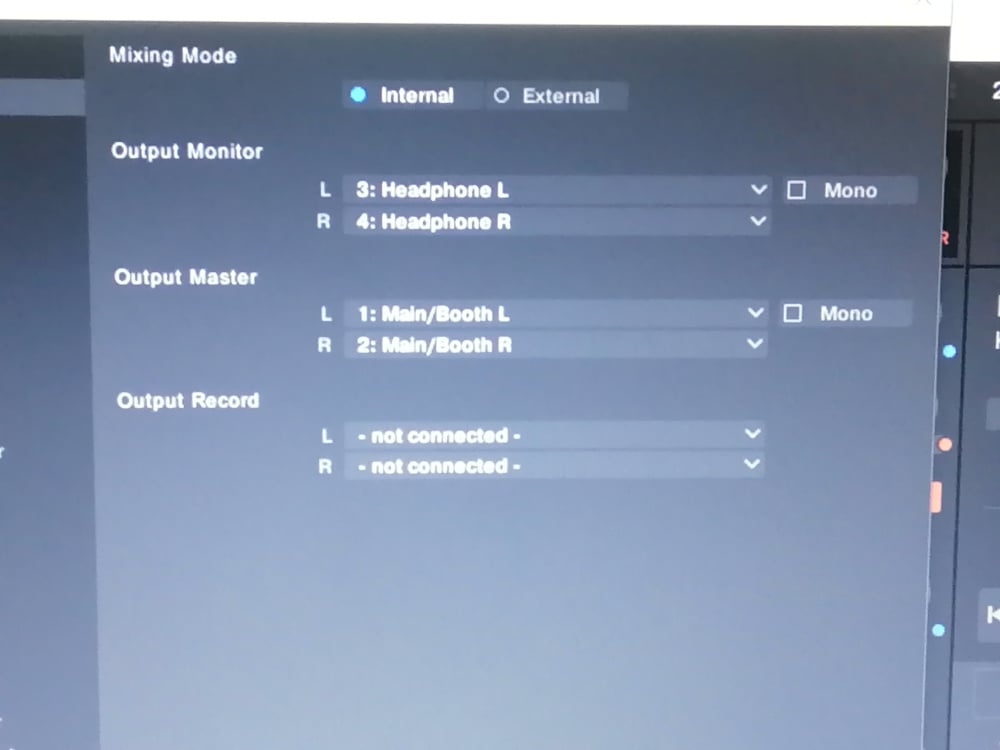

also this settings is fine and everything works fine, except the live input [c or d]

lord-carlos

Ah, I think I have seen this before.

Make sure you have installed and use the ASIO driver.

On the "Audio setup" you have to select "S4 mk3 ASIO" and NOT " S4 mk3 WASAPI (Shared)" or "S4 mk3 WASAPI (Exclusive)"

If you already are using ASIO, try installing the driver again.

With love, load-carros 💖

Yiannis Momos

fine load-carros, I will install asio

Yiannis Momos

thanks for your help anyway, I will tell about results.

Yiannis Momos

I 've done it, it was missing the asio, as you said, but still no sound. anyway thanks for you help, I'll check the controller with technician. thanks!

unknown

This content has been removed.

unknown

This content has been removed.
