Hello to all,

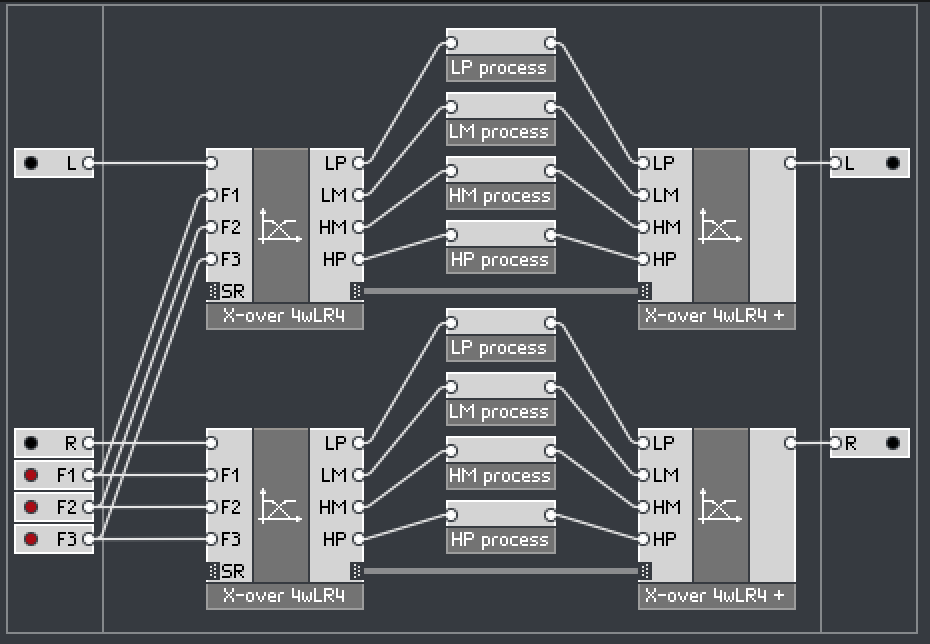

I would like to split a broadband signal into 4 frequency bands in order to add harmonics differently on each band (using the same distortion unit built with Reaktor Core for each frequency band, but with different distortion levels), then recombine the four bands without encountering phase issues.
To this end, I started by using the 4-way crossover system that is part of FlatBlaster; it works perfectly, unfortunately the filters are not steep enough for my needs.

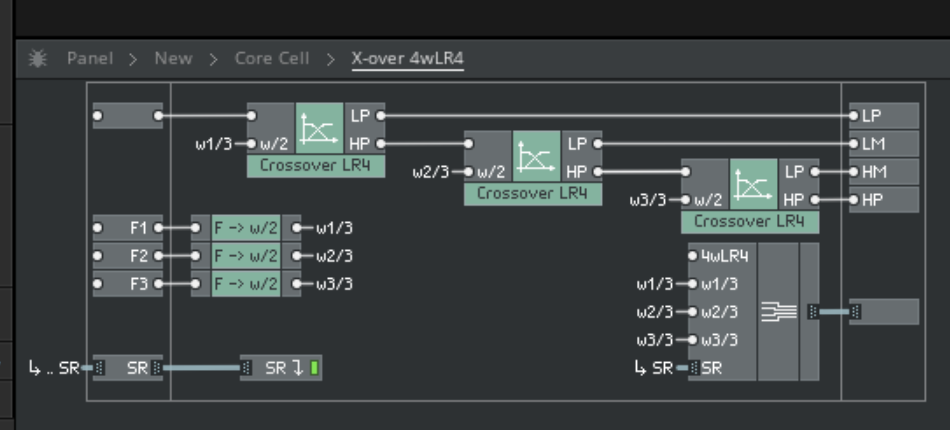

Then I tried building a system with 4-pole Linkwitz-Riley crossover Core Macros, but as far as I can tell the factory Core Macros allow to build 2-way and 3-way crossfaders, not 4-way ones.
I searched the user library several times, but I couldn't find anything that fully met my needs.
So here I am, asking for help!
Would anyone be able to help me build a “simple” 4-way 4-pole crossover system, which could probably be useful to others as well?
(Note: I don't need assistance regarding distortion units, only the crossover system!)
