Cascade mixer connection Traktor Z2 -> Proel PlayMix6

Hello everyone.
I have a Proel PlayMix6 mixer and a Traktor Z2 mixer.
Since I need to connect microphones and an audio input, I think the best option is to connect the microphones and inputs to the Proel, connect the Z2's output to the Proel, and then connect the Proel to the speakers.

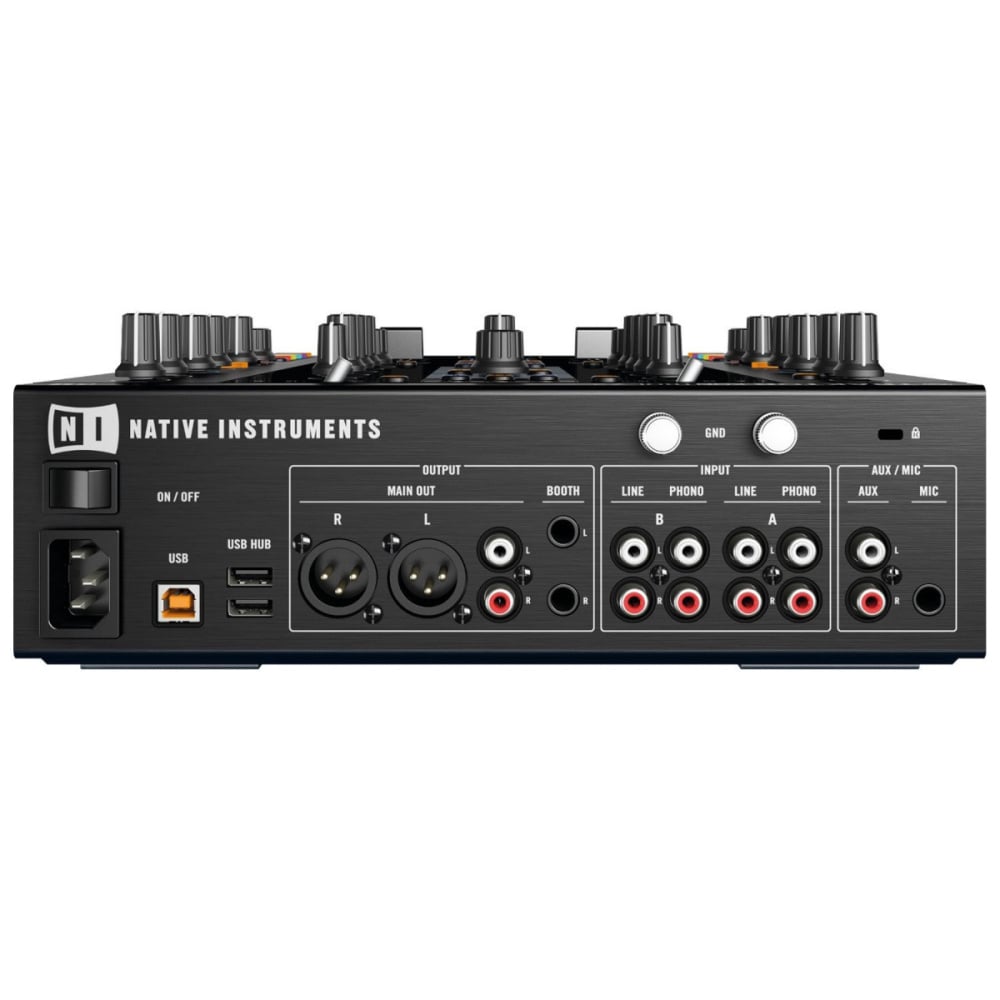

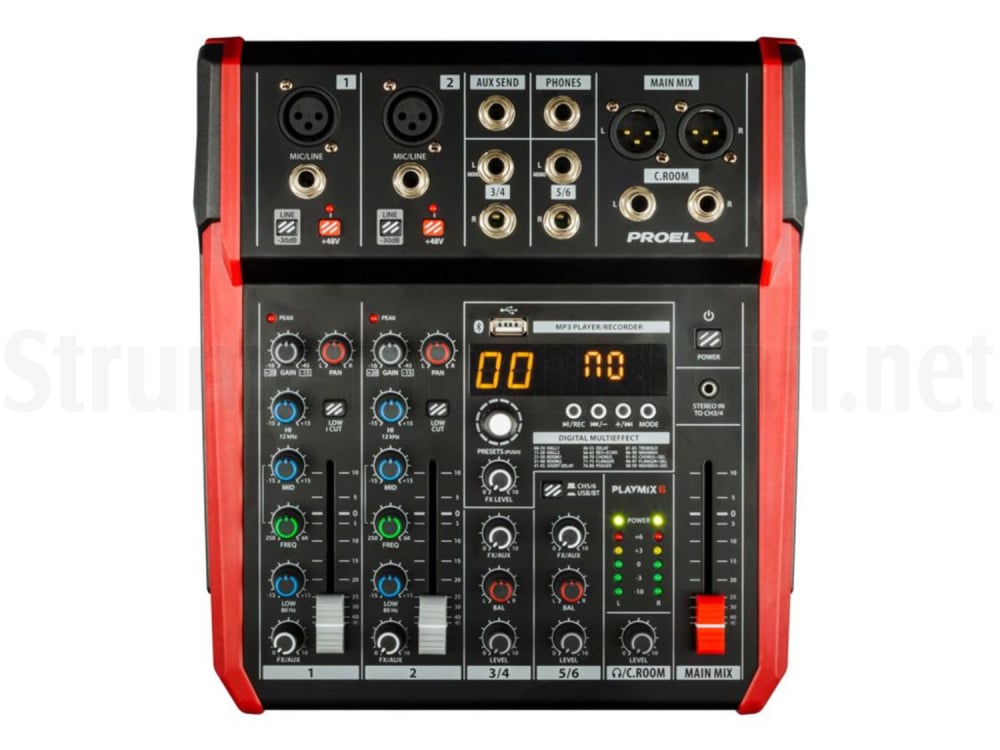

Looking at the attached photos, could you tell me what the best connections are, in terms of channels and cables, from the Z2 to the Proel?
Thanks in advance.

Find more posts tagged with

Accepted answers

Uwe303

Hello,

the mics you connect to channel one and two and the z2 with an xlr female to trs 6,3 mm plug cable or a cinch to ts 6,3 mm plug cable. If you search for "xlr to ts cable" you should find tons of those cables. And mics you connect with xlr-xlr cables, set phantom power as you need it, with dynamic mics you set it off of course, with condensers on. The z2 i would connect with a xlr to trs cable, xlr to ts should work too.

lord-carlos

Lots of options :P Like Uwe said XLR to 6.3mm TS cable.

Or male 6.3mm TS to male 6.3mm TS and use the booth out.

Heck if the two mixers are close together you can even use RCA to 2x 6.3mm TS. It's not a balanced signal any more, but rarely a problem on short distances.

But like Uwe I would also go with XLR to 6.3mm TS. Or TS to TS via booth.

I have not used the z2 yet, but on for example the s4 mk3 the mic input was very weak. You might have to connect the mic to the Proel. But you will figure that out quickly and they use the same input.

All comments
