Converting gate to trigger , always during note on-off

gentleclockdivider

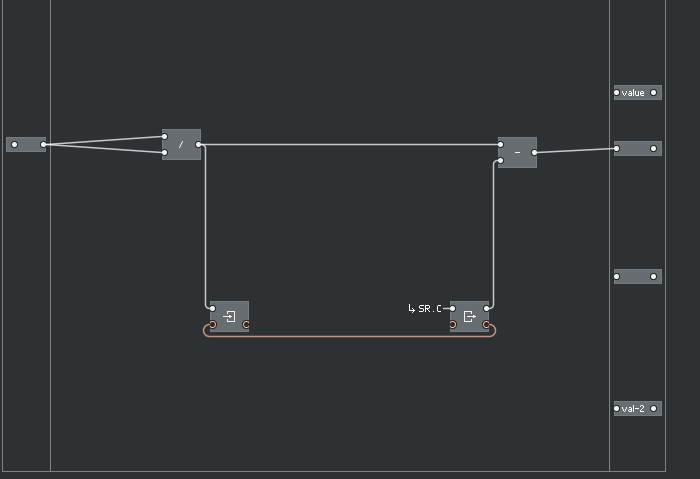

Easy to turn a gate into a trigger impulse by subtracting the delayed version from the O.g
This will produce an implse during gate ON and gate OFF
When using the divide module , this way whatever value the gate has , the result is always 1 ( not unfluenced by velocity )

However , the z-1 memory latch does not like this
I tried latches for the divide but no luck , until I realised a NAN could be the issue

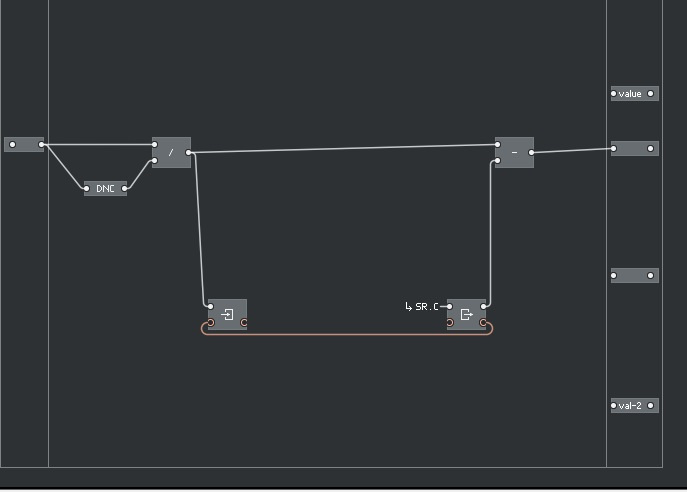

A DNC module before the second input of the divide is required to make it work properly .
Is this becasue the delayed z-1 does not like when the division is 0/0 during gate off ?

gentleclockdivider

This is interesting

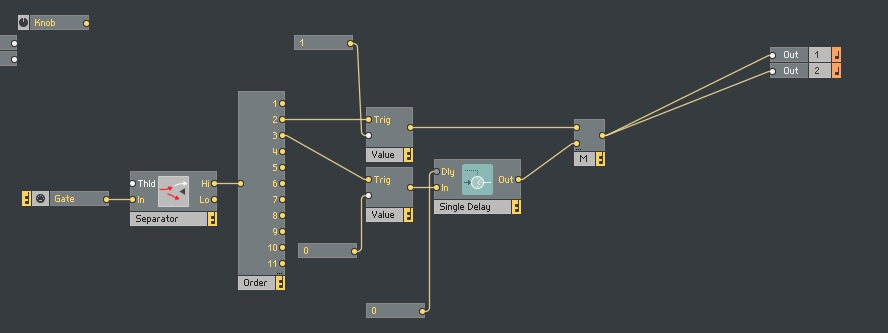

Creating an impulse from a midi gate in primary
USing only the high ouptut of the separator into an order module .
First output of order triggers value 1 , second output of order triggers value 0 which then goes into a delay set 0ms ( the delay fuctions as an event delay )

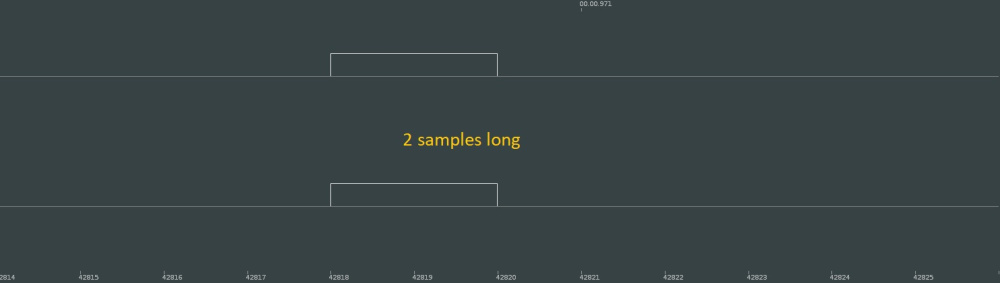

Both are then merged , the result is a unit spike of length 2 samples , weird since the delay is set to 0ms
We could argue this is because of the limited event rate , but event rate settings have no influence on this.

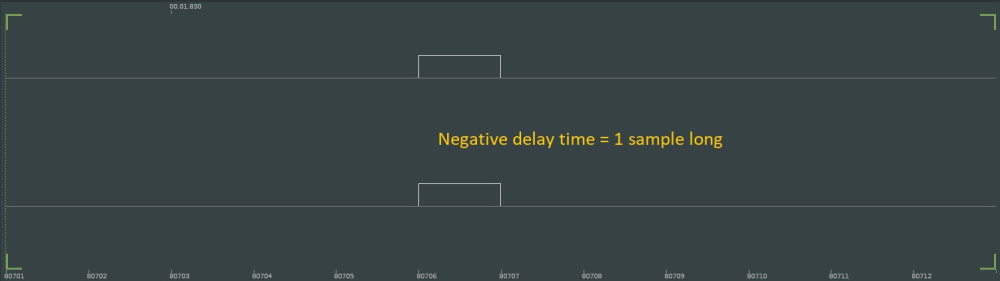

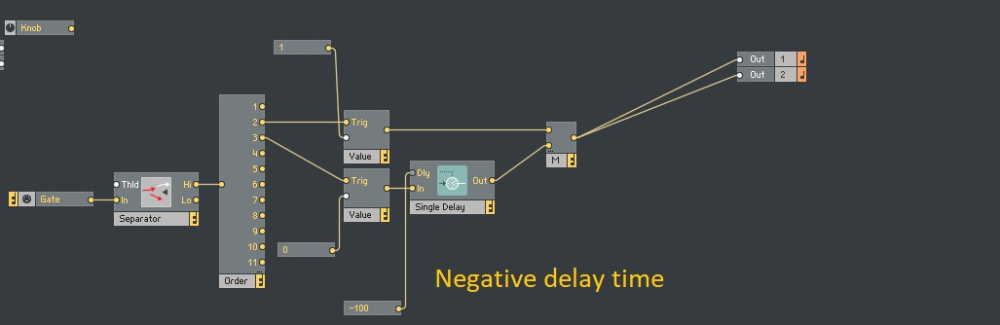

The solution to get a 1 unit spike is set a negative delay time
