S2 Mk2 Central cross fader and fader board connector

Hello I had to replace my S2 Mk2 play and cue, switches.

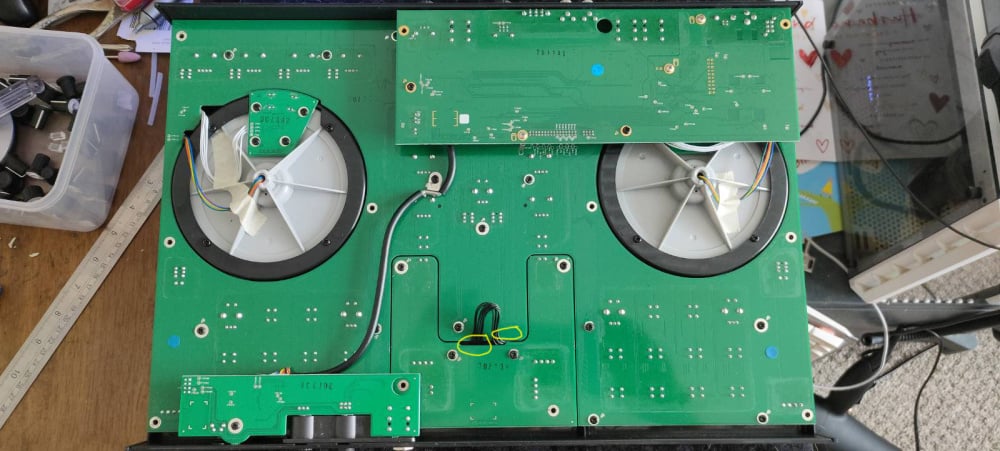

I was successful, however when disassembling the device the now 12 year old board connectors crumbled and I need to know the specific name of the connectors and where to order them.

I have never attempted this stuff before.

Best regards,

S

Find more posts tagged with

S2 MK2

Accepted answers

Stealth

Specifically:

8 Pole PicoBlade Socket to Bare End Lead, Pitch 1.25mm, 225mm

All comments

Stealth

After spending a day on it, it is a:

PicoBlade Connector

Stealth

Specifically:

8 Pole PicoBlade Socket to Bare End Lead, Pitch 1.25mm, 225mm

Sûlherokhh

https://community.native-instruments.com/discussion/comment/236182#Comment_236182

Keep us updated how your project goes. This may be of interest not just to you, even though participation in this discussion is dismal. 🙂
